  ../images/main/bullet_green_ball.gif De-multiplexers

They are digital switches which connect data from one input source to one of n outputs.

Usually implemented by using n-to-2n binary decoders where the decoder enable line is used for data input of the de-multiplexer.

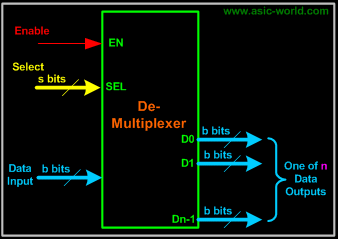

The figure below shows a de-multiplexer block diagram which has got s-bits-wide select input, one b-bits-wide data input and n b-bits-wide outputs.




../images/digital/demux_blk.gif






  ../images/main/bulllet_4dots_orange.gif Mechanical Equivalent of a De-Multiplexer

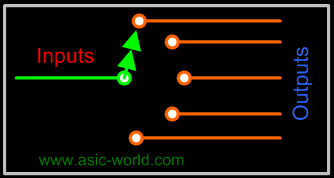

The operation of a de-multiplexer can be better explained using a mechanical switch as shown in the figure below. This rotary switch can touch any of the outputs, which is connected to the input. As you can see at any given point of time only one output gets connected to input.




../images/digital/demux_mecha.gif

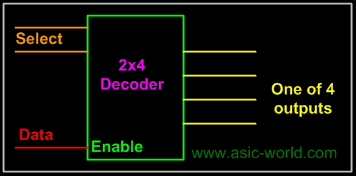

1-bit 4-output de-multiplexer using a 2x4 binary decoder.




../images/digital/demux_using_2x4_decoder.gif



  ../images/main/bulllet_4dots_orange.gif Example: 1-to-4 De-multiplexer



Symbol




../images/digital/demux.gif



Truth Table

S1

S0

F0

F1

F2

F3

0

0

D

0

0

0

0

1

0

D

0

0

1

0

0

0

D

0

1

1

0

0

0

D
