  ../images/main/bullet_green_ball.gif Introduction

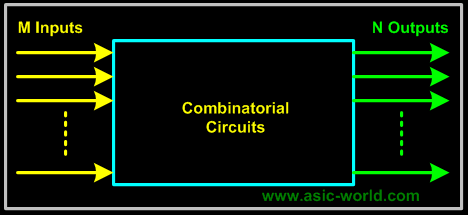

Combinatorial Circuits are circuits which can be considered to have the following generic structure.




../images/digital/combo_mxn.gif

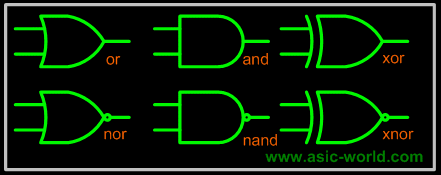

Whenever the same set of inputs is fed in to a combinatorial circuit, the same outputs will be generated. Such circuits are said to be stateless. Some simple combinational logic elements that we have seen in previous sections are "Gates".




../images/digital/combo_gates.gif

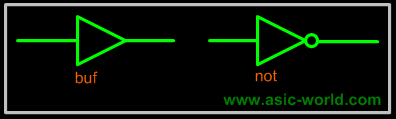

All the gates in the above figure have 2 inputs and one output; combinational elements simplest form are "not" gate and "buffer" as shown in the figure below. They have only one input and one output.




../images/digital/buf_inv_combo.gif
